Model No:SPH-M046
Study damped oscillations and determine logarithmic decrement
The Damped Oscillations Apparatus for Determination of Logarithmic Decrement is a physics laboratory instrument designed to study the behaviour of oscillating systems in which the amplitude gradually decreases due to resistive forces. It enables students to investigate damping, energy dissipation, oscillation amplitude, and the logarithmic decrement of a damped oscillatory system.

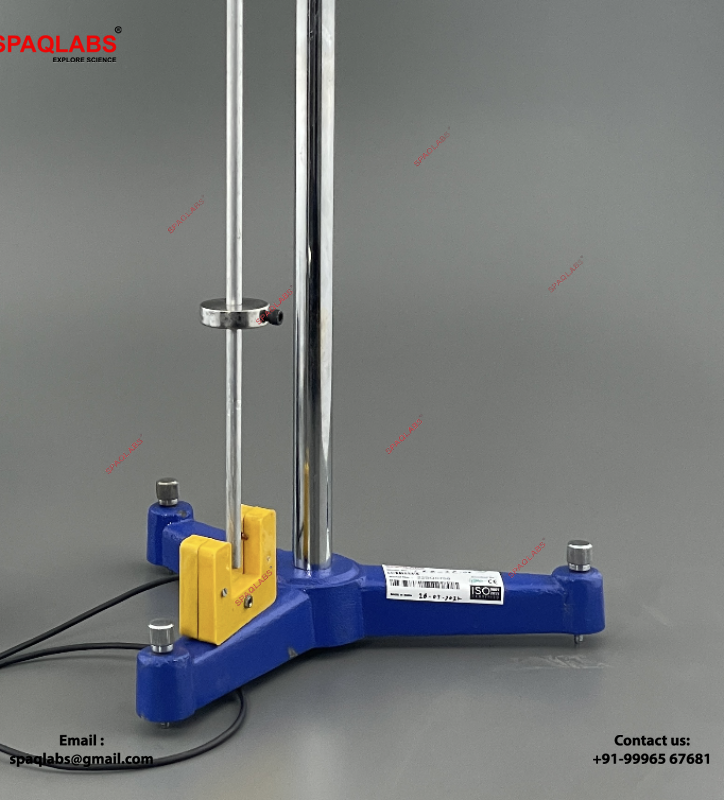

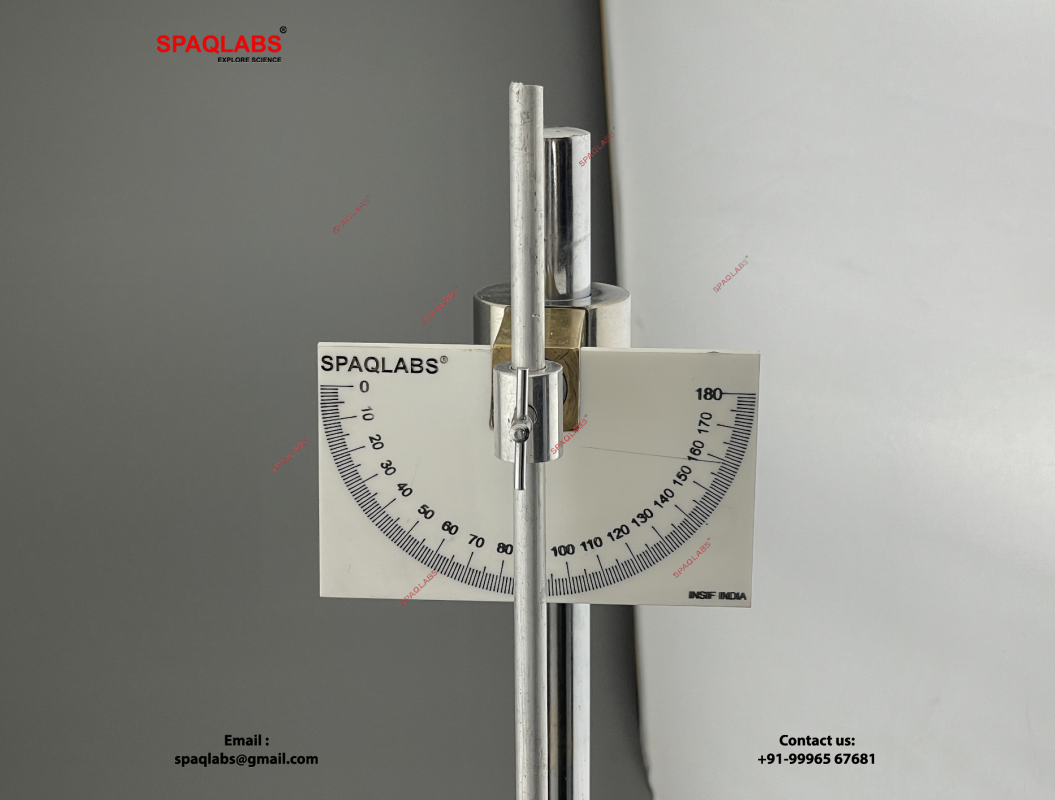

The apparatus generally consists of an oscillating element, a supporting frame, and a damping mechanism. Depending on the model, damping may be produced by air resistance, fluid resistance, or an electromagnetic arrangement. Students observe successive maximum amplitudes of oscillation and record their values at regular intervals to determine the logarithmic decrement.
The experiment helps demonstrate how damping affects the amplitude and motion of an oscillating system over time. It also provides practical insight into underdamped motion, energy loss, damping characteristics, and the relationship between successive amplitudes.
This apparatus is suitable for undergraduate physics laboratories, engineering colleges, universities, applied mechanics laboratories, and educational institutions for experiments involving oscillations and wave motion.
Aim : Study the stated oscillatory system and determine the relevant period, frequency, coupling or mechanical parameter.
Product Specifications
Contents
