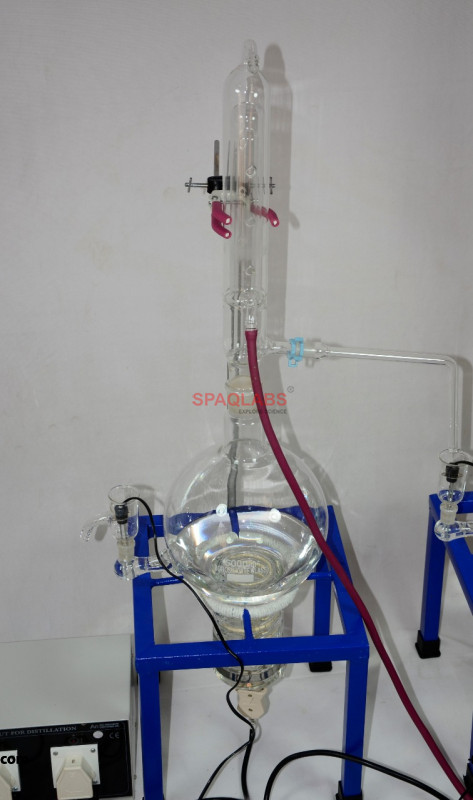

Model No:GL-859
| Distillation Unit Specifications | |
|---|---|
| Output | Distill water output cap 1.25 lt/hr approx, heater load 1.5 x 2 kw |
| Body | All glass made in borosilicate glass |
| Type | Vertical distillation type NPL design |
| Cut-off | Automatic power supply when water level low (1 no) (provision for Two) |
| Copper Probes | Dips into Side Glass Cup (2 nos) |
| Heaters | Glass flask with embedded heating elements fused in spiral with glass coil internally at bottom (2 nos) |
| Condenser | Double wall coiled with standard ground glass joints (2 nos) |
| Stand | Metallic Rectangular 24”x12”x12” with two 12 mm x 18” M.S. Chromed Rod |
| Clamps | Universal with 3 finger clamp with rubber tube Gasket (2 nos) |
| PP Clamps | For clamping Output L shape Joint 6” long x 3” bend (2 nos) |
| Side Cup | Glass with output Waste water (rubber tube to be connected) (2 nos) |
| Mains | Electric required 220-240 volts 50 Hz |
| Accessories | Included with the instrument: a) Rubber tube 8 mm 6 meters b) PP clamp 2 nos c) Universal clamp & Boss head 2 no d) Wire with Shoe (2 nos) |
| Parts | 1. Flask 2. Condenser 3. Bend 4. Cup 5. Iron Stand with M.S. Rod 6. Auto cut with Auto Cut Probe 7. Wire & Shoe |
| Product Code | Cap Flask Ltr/hr | Heater K.W each Flask |
|---|---|---|
| GL859A | 3 Ltr | 1 KW |
| GL859B | 5 Ltr | 1.2 KW |
| GL-859C | 10 Ltr | 1.5 KW |
