Model No:GL-859T
| Output | distill water out-put cap 1.25 lt/hr apx, heater load 1.5 x 2 kw |
|---|---|
| Body | all glass made in borosilicate glass |
| Type | vertical distillation type NPL design |

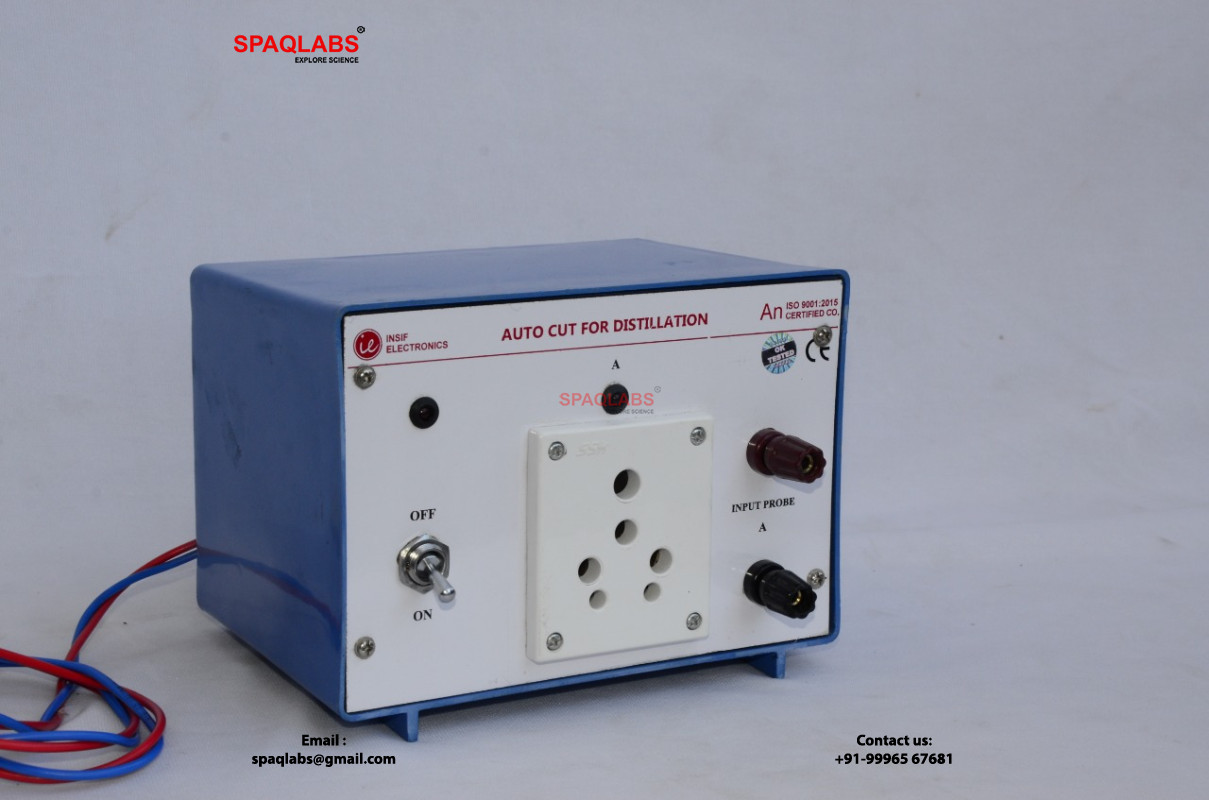

| Cut-off | automatic power supply when water level low (1 no) (provision for Two) |
| Copper Probes | which dips into Side Glass Cup (2 nos) |
| Heaters | glass flask with embedded heating elements fused in spiral with types glass coil internally at bottom. (2 nos) |
| Condenser | A double wall coiled has standard ground glass joints (2 nos) |
| Stand | metallic Rectangular 24"×12"×12" with two 12 mm × 18" M.S. Chromed Rod |
| Clamps | Universal with 3 finger clamp with rubber tube Gasket (2 nos) |
| PP Clamps | for clamping Output L shape Joint 6" long × 3" bend (2 nos) |
| Side Cup | Glass with output Waste water (rubber tube to be connected) (2 nos) |
| Mains | electric required 220-240 volts 50 Hz |
| Accessories | Included with the instrument: a) Rubber tube 8 mm 6 meters, b) PP clamp 2 no, c) Universal clamp & Boss head 2 no, d) Wire with Shoe (2 nos) |
| PARTS | 1. Flask 2. Condensor 3. Bend 4. Cup 5. Iron Stand with M.S. Rod 6. Auto cut with Auto Cut Probe 7. Wire & Shoe |
